Load Class
A15 – F900
FRP Manhole Cover
Round & Square Options
- Corrosion Resistant
- Lightweight
- Theft Resistant
BS EN 124 certified FRP manhole covers manufactured for infrastructure, roads, drainage, municipal and industrial applications.
Available in standard and custom sizes with different load-class options.
Our team will contact you to discuss your requirements and pricing.
Trusted by Leading Organizations
Modern infrastructure demands stronger, lighter, corrosion-resistant and maintenance-free access solutions.
Himalaya manufactures FRP manhole covers, recess manhole covers, gully covers, trench covers and drainage solutions for infrastructure, municipal, commercial and industrial projects across India.
Round & Square Options
Tile / Stone Infill Option
High Flow Capacity
Ideal for Cable Trenches
Leak Proof & Odour Tight
Strong & Lightweight
Request a quote for your required size.
Share your cover shape, clear opening size, load class, quantity and delivery location. Our technical team can help you finalise the specification.
Standard frame dimensions and the complete range of clear opening sizes across our FRP / GRP covers. Custom sizes are manufactured to your drawing on request.
Overall outer dimensions of the frame.
Usable opening inside the frame.
Swipe sideways to see every column.
| Frame Size (inches) |
Frame Size (mm) |
Clear Opening (inches) |
Clear Opening (mm) |
Weight / Piece (kg) |
Box Pack (pieces) |
|---|---|---|---|---|---|
| 10 × 10 | 250 × 250 | 7.8 × 7.8 | 195 × 195 | 2.25 | 13 |
| 12 × 12 | 300 × 300 | 10 × 10 | 250 × 250 | 3.15 | 13 |
| 15 × 15 | 380 × 380 | 12 × 12 | 300 × 300 | 5 | 11 |
| 18 × 18 | 450 × 450 | 16 × 16 | 375 × 375 | 9 | 5 |
| 18 × 24 | 450 × 600 | 14 × 20 | 350 × 510 | 9 | 5 |
| 21 × 21 | 535 × 535 | 18 × 18 | 450 × 450 | 11 | 3 |
| 24 × 24 | 600 × 600 | 20 × 20 | 510 × 510 | 13.5 | 3 |
| 28 × 28 | 710 × 710 | 24 × 24 | 610 × 610 | 19 | 2 |
| 30 × 30 | 762 × 762 | 26 × 26 | 650 × 650 | 25 | 1 |
| 36 × 36 | 914 × 914 | 31.6 × 31.6 | 790 × 790 | 35 | 1 |
Frame size is the overall outer dimension of the frame. Clear opening is the usable opening inside the frame. Weights and box quantities are indicative and can vary with the load class selected.
| Product Type | Clear Opening Size |
|---|---|
| Circular Manhole Cover with Frame |
530 mm dia560 mm dia600 mm dia900 mm dia1200 mm dia
|
| Square Manhole Cover with Frame |
450 × 450 mm600 × 600 mm750 × 750 mm900 × 900 mm1000 × 1000 mm1200 × 1200 mm1500 × 1500 mm
|
| Rectangular Manhole Cover with Frame |
450 × 600 mm450 × 900 mm600 × 900 mm750 × 900 mm600 × 1200 mm900 × 1200 mm
|
| Product Type | Clear Opening Size |
|---|---|
| Circular Gully Cover with Frame |
600 mm dia
|
| Square Gully Cover, with or without Frame |
300 × 300 mm450 × 450 mm600 × 600 mm750 × 750 mm900 × 900 mm1000 × 1000 mm1200 × 1200 mm
|
| Rectangular Gully Cover, with or without Frame |
450 × 600 mm450 × 900 mm600 × 900 mm1200 × 900 mm
|
The 600 mm diameter circular water gully cover is supplied with frame only.
| Product Type | Clear Opening Size |
|---|---|
| Recess Cover with Frame, 65 mm Depth |
300 × 300 mm450 × 450 mm450 × 600 mm600 × 600 mm750 × 750 mm450 × 900 mm600 × 900 mm900 × 900 mm1000 × 1000 mm
|
| Recess Cover with Frame, 32 mm Depth |
300 × 300 mm450 × 450 mm
|
Recess covers take a tile, stone or paver infill so the cover matches the surrounding floor finish.
All product table dimensions are clear opening sizes in millimetres. Please confirm the required frame dimension and load class with our technical team before placing an order. Sizes outside this chart are manufactured to drawing.
Two decades of manufacturing depth, in-house testing and a supply network that reaches every corner of India.
Continuous innovation to deliver advanced FRP solutions tuned to Indian site conditions.

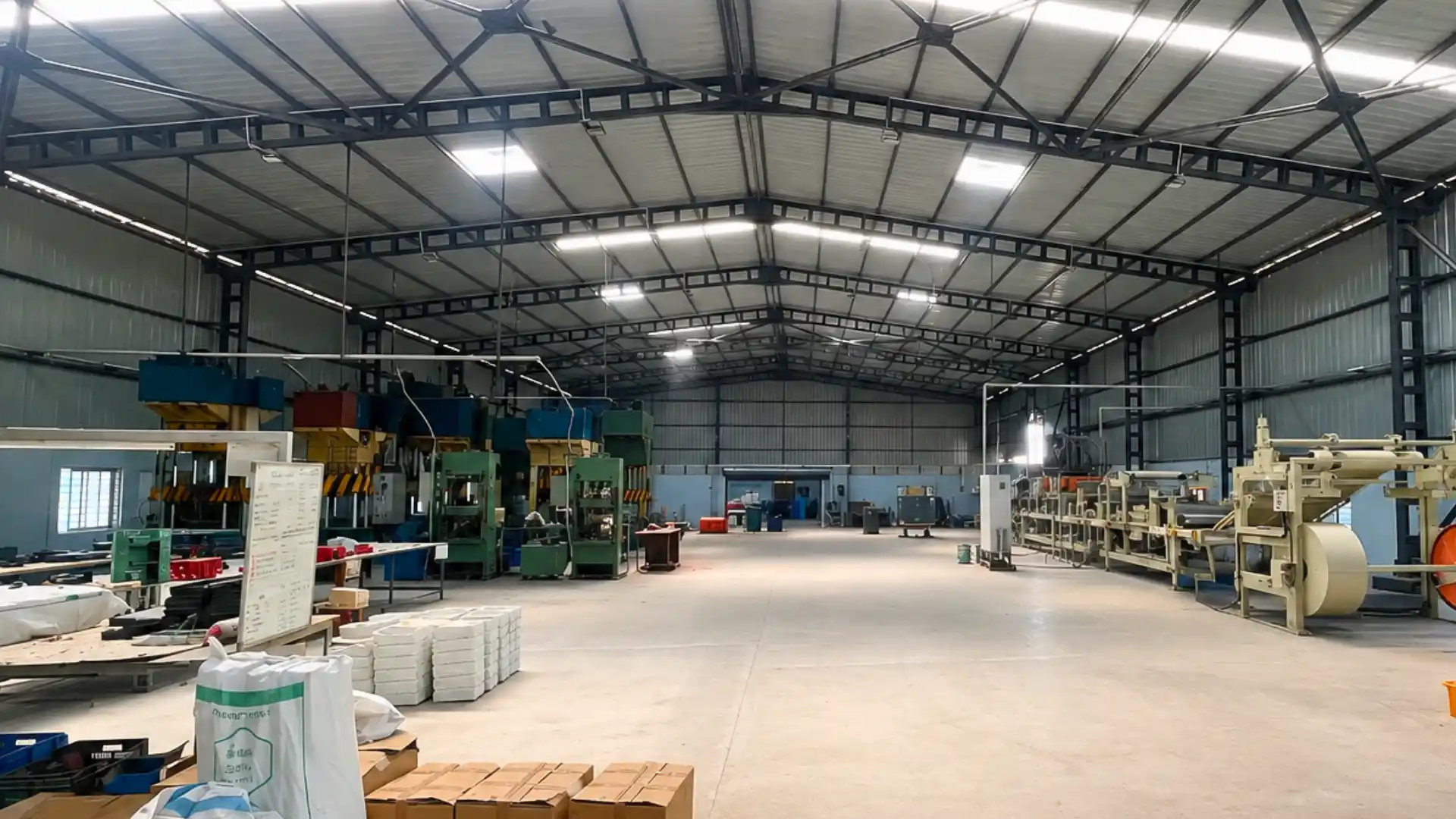

State-of-the-art compression moulding and hydraulic pressing machinery for precision manufacturing.
Tailored sizes, load classes, colours and branding manufactured exactly to your project drawings.
Every product tested and certified to BS EN 124:2015, the international standard for access covers.
Rigorous load, impact and weathering tests carried out at our own laboratory before dispatch.
Strong logistics network delivering to 25+ cities with committed project timelines.
Seven controlled stages, from raw material selection to dispatch, with quality checks built into every step.
Certified resins, glass fibre and fillers sourced from approved suppliers.
Precisely metered batches blended for consistent mechanical strength.
SMC charge loaded into heated dies for a void-free, uniform section.
High-tonnage presses consolidate the laminate under controlled pressure.
Load, impact and dimensional checks against BS EN 124:2015 in our own lab.
Palletised and strapped to survive long-haul transport without damage.
Pan-India logistics with tracking and committed delivery dates.

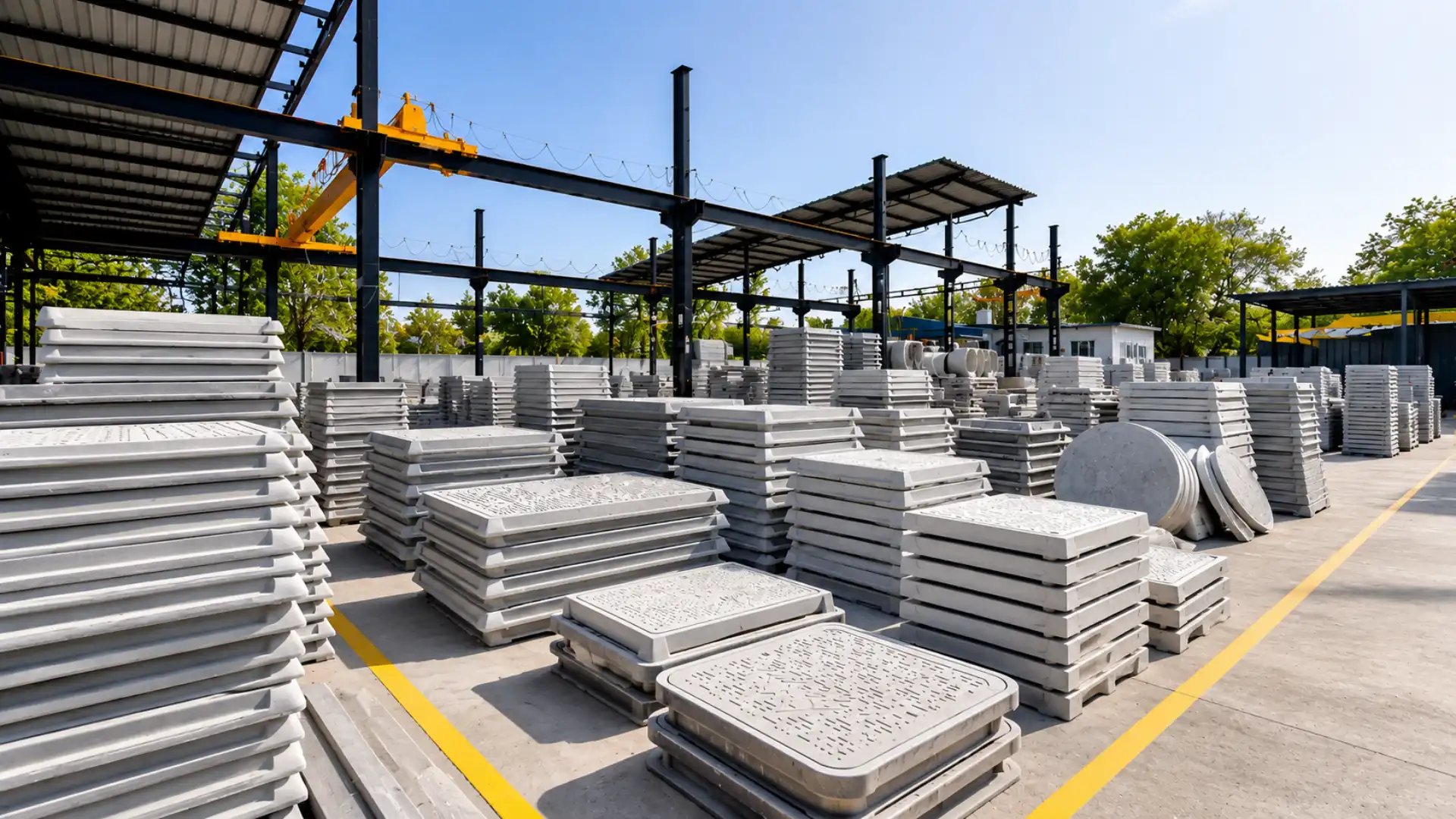

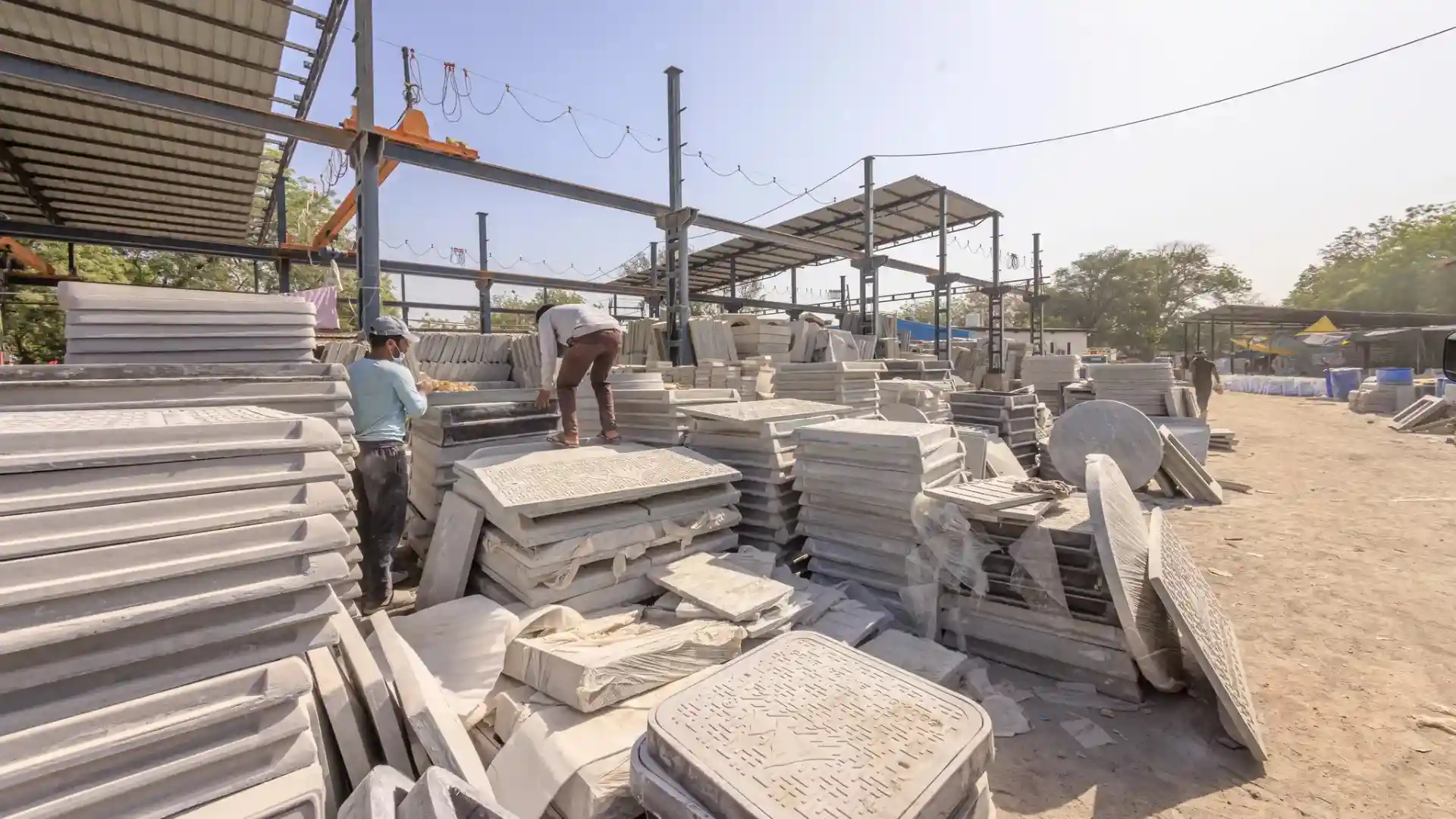

From municipal drainage networks to airport airside infrastructure, Himalaya FRP products are specified across every major infrastructure sector in India.
Our FRP manhole covers are manufactured for applicable load-class requirements and project-specific infrastructure applications.
Quality management system certified across design, manufacturing and dispatch.
Products certified to the international standard for gully tops and manhole tops.
Load testing to F900, impact, water absorption and dimensional verification on site.
Batch traceability with documented QA records supplied alongside every consignment.
Installations delivered for municipal corporations, metro rail, airports, industrial estates and premium commercial developments.
Feedback from project managers, consultants and municipal engineers who specify Himalaya products.
Himalaya has been our preferred supplier for FRP manhole covers across multiple metro and infrastructure projects in Gujarat. Their BS EN 124:2015 certification, consistent product quality and reliable delivery schedules make them...
For our premium residential developments, we exclusively specify Himalaya FRP recess covers. The quality of finish, dimensional accuracy and the ability to accommodate custom flooring infills has made our projects look outstanding...
We have been procuring RCC manhole covers and hume pipes from Himalaya for over a decade. Their BIS license and consistent IS 12592 compliance gives us confidence in every procurement. For a municipal corporation that is accountab...
